Click here for more information on the VT-0102 mode-S transponder

MGL-Garrecht interface installation document


This product is no longer available from MGL Avionics and there is no more stock of the required interface to connect this transponder to MGL EFIS systems. Information here for reference only.

Garrecht Avionics remote Mode-S transponder

VT-0102-070 Class 2 (170W operation up to 15.000ft)

VT-0102-125 Class 1 (250W operation up to 40.000ft)

Avaliable as either Class 1 or Class 2 compliant mode-S transponder.

The VT-0102 is a remote mount transponder that is controlled by a MGL EFIS and does not require any further panel space. The VT-0102 provides a full function mode-S transponder to level 2es and is EASA approved. The VT-0102 can be connected to the following EFIS systems: Odyssey G2, Voyager G2, XTreme EFIS, iEFIS Discovery, iEFIS Explorer and iEFIS Challenger.

The VT-0102 is also compatible with the MGL REM-T1 remote head which provides a redunant, 2.14" panel mount interface to the transponder while at the same time allowing remote control from an EFIS system.


Note: This device may not be operated in European airspace, only mode-S transponders are permitted in Europe.


Note: This product is not resold by MGL Avionics South Africa. Information here for reference only.

Sandia Aerospace Stand Alone and remote control, low cost Mode-C transponder

STX165 panel mount mode C transponder

STX165R remote mount mode C transponder

For applications where a traditional mode-C transponder is adequate, MGL Avionics offers the Sandia Aerospace transponders. The STX165R transponder can be remotely controlled through MGL G2 EFIS systems, iEFIS systems and the XTreme EFIS.

The STX165 includes a built in altitude encoder, the STX165R obtains the altitude from the connected EFIS system. These transponders are brand new to the market and have just received their FAA certification.

Please note: The STX165 cannot be remotely controlled, it is a full feature, stand-alone transponder. The STX165R is the remote control version. It does not have a panel display and is indended for remote mounting, controlled through an external device such as an EFIS.

These transponders are the current, lowest cost option for a certified mode-c solution on the Planet !

More information at www.sandia.aero

STX165 user manual

STX165 and STX165R installation manual

STX165 panel cutout

Connecting, configuring and using the STX165R with a MGL EFIS system.

Aircraft Transponders

MGL Trig transponder interface

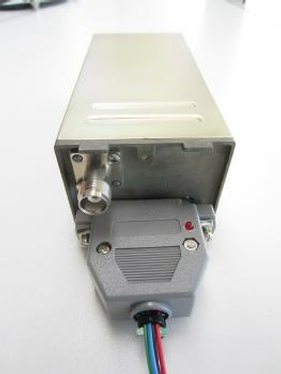

Using the MGL Avionics Trig interface contained in a convenient connector backshell you can connect a Trig Avionics TT21 or TT22 mode a/c/s transponder body to the MGL iEFIS and MX1. Connected to the EFIS via CAN bus the combination is 2020 compliant for the GPS position source in two levels - via the EFIS built in GPS to SIL/SDA 1/1 or by connecting the MGL Avionics SP-12 approved GPS source to SIL/SDA of 2/3.

Note: MGL Avionics South Africa does not resell the Trig transponders, only the interface for them.

Note: You cannot use the Trig transponder control head at the same time as the MGL Trig interface. You can purchase the Trig transponder body without the Trig head for remote applications like this one and save the cost of the head.

Note: A MGL transponder control head will become available for the MGL Avionics T16 transponder. This is also compatible with the MGL Trig interface. The head is in Vega 2.25” format.

More information: SP-12 GPS module

More information: Trig Transponder
