MGL Avionics

iEFIS MX1

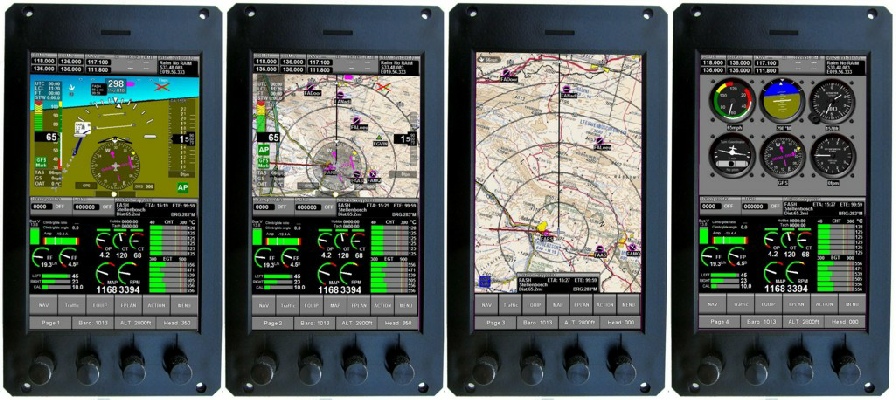

The MX1 is the latest in the long line of MGL Avionics developments. This portrait mode EFIS features a 7” wide viewing angle touch screen.

Different from its iEFIS siblings it is based on the latest developments in microcontroller technology. Microcontrollers have become very powerful indeed and are encroaching on the performance advantages of application processors. The MX1 is a manifestation of this. It packs most of the functionality of a traditional iEFIS system into a lower cost solution that requires fewer components resulting directly in potentially higher robustness and reliability in challenging environments.

The MX1 shines as a low cost single panel solution for many applications but can equally well be combined into an integrated multi-panel system with up to 8 panels very similar to a traditional, full function iEFIS system.

Simple installation and wiring up, built in, newly developed AHRS, altimeter to 40.000ft, dual airspeed sensors covering the range from just 20mph to mach 1 at sea level, built in AOA sensor, audio voice annunciation and sound generators for AOA and Vario, OAT sensor and built in WAAS GPS qualified to TSO-C199 SIL/SDA of 1/1. CAN bus and 4 internal RS232 ports (expandable to 8 ports). Support for all MGL devices and peripherals and several third party products. Analog and digital inputs and outputs with the iEFIS Expander.

Full iEFIS autopilot (up to three axis control), interfaces to transponders, COM and NAV radios as well as the MGL A16 intercom system.

User definable custom screens just the way you can do with any other iEFIS system.


MX1 Installation manual - link to pdf file

MX1 User manual - link to pdf file

Note: Manuals are not fully complete yet but quite comprehensive - working on it, check back soon...
