MGL Avionics

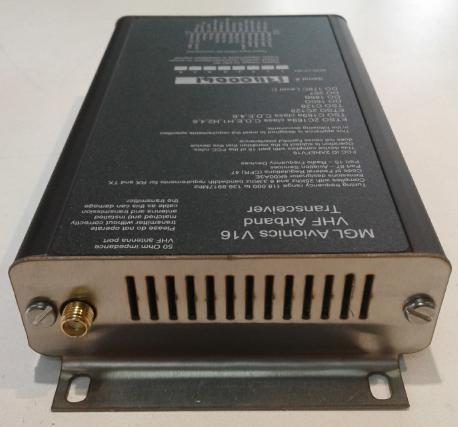

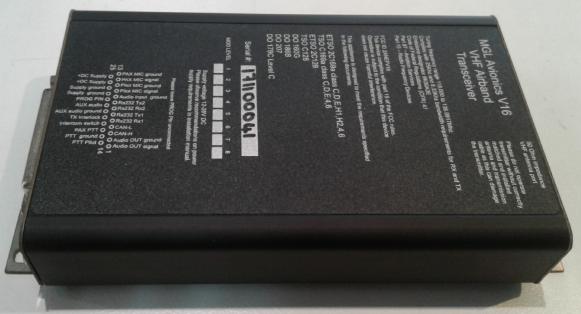

V16 Airband transceiver



Documents for download

The V16 user and installation manual

The V16 Interface Control document (ICD) for third party developers (Note updated to V3)

Additional documents, approvals etc - follow this link

Also available for OEM applications - follow this link for details !

The V16 VHF airband transceiver is a split module design. This allows great flexibility of use. Connect to an MGL iEFIS and use the EFIS as control head for a low cost, minimum panel space design or fit a Razor 3.1/8” touch screen control head or a Vega 2.25” control head - or fit any combination of these if you would like to control your radio from different stations.

In combination with the MGL N16 navigation receiver (available soon) build a NAV/COM solution supporting industry standard protocols at lowest cost yet with a performance exceeding the most expensive current solutions !

Both the V16 and N16 are built around a newly developed high performance direct conversion receiver architecture that avoids many of the problems present in traditional radios while offering possibilities simply not practical with older technology.

V16 installation options - what can you do ? Follow this link...


Optional:

Convenient adaptor SMA to BNC for simple retrofit.

Supplied with the V16:

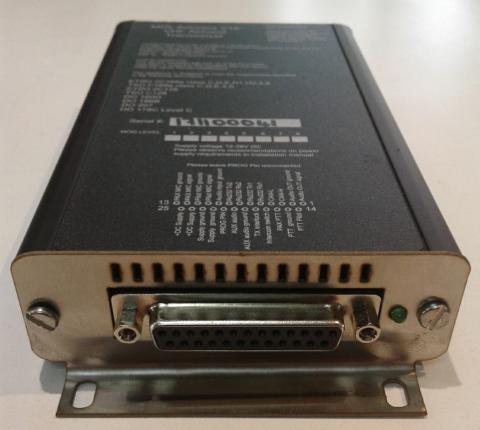

D25 solder bucket connector with gray plastic shell.

SMA to RG58 (or similar) antenna cable crimp connector.

Abbreviated, printed manual.
